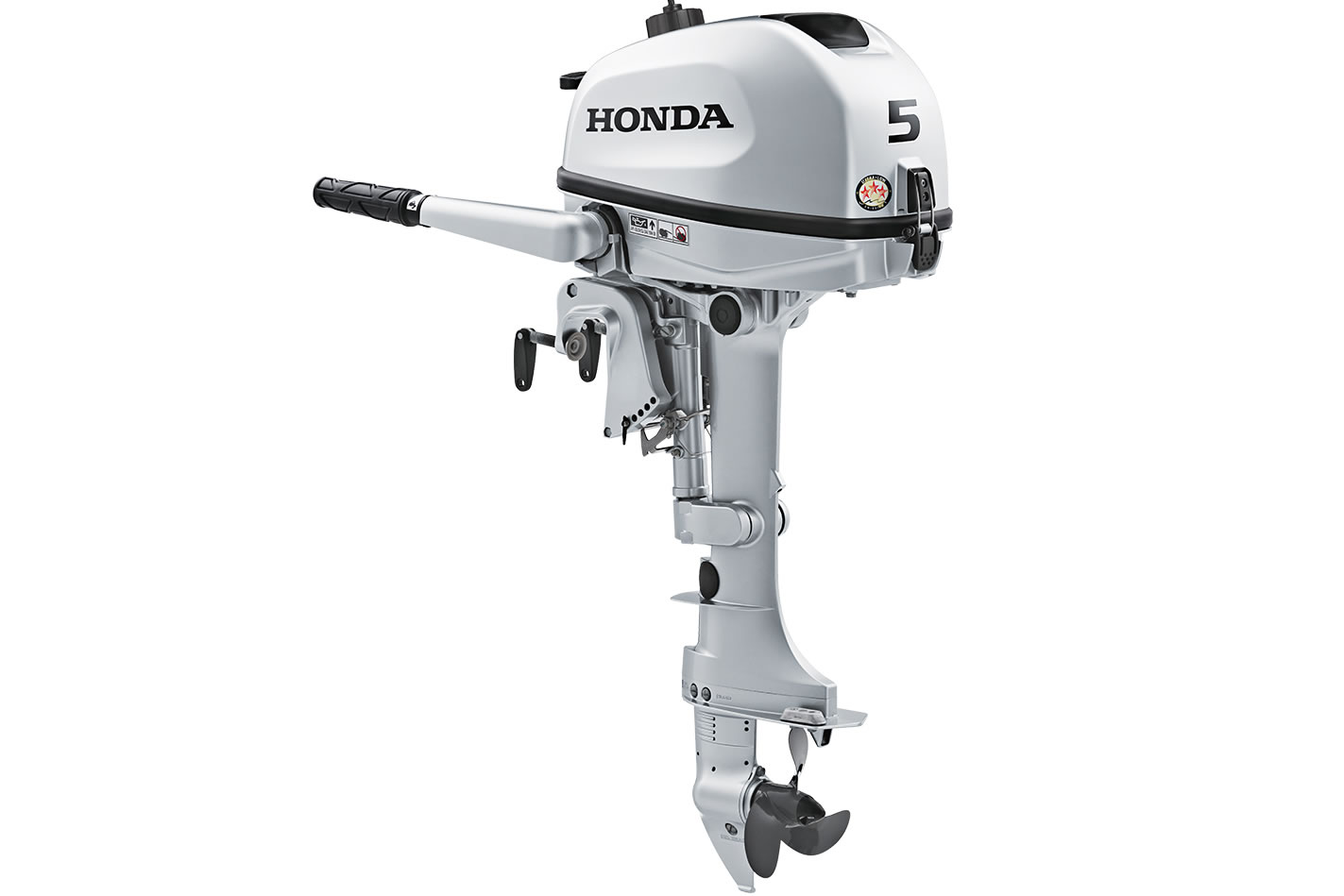

Portable BF5
Özellikler
Dört zamanlı teknoloji
Daha fazla güç için yüksek silindir hacmi
Yağ basıncı gösterge lambası
Kolay ve çabuk çalıştırma için Dijital CDI programı
Sığ sularda seyir için 5 kademeli kaldırma açısı
Motor titreşiminden izole edilmiş dümen kolu
Teknik Özellikler
Engine Type:
4-Stroke OHV, 1 Cylinder/2 Valves
Displacement:
127 cc (7.8 cubic inches)
Bore & Stroke:
60 mm x 45 mm (2.4 x 1.8 inches)
Full Throttle RPM Range:
4,500-5,500 RPM
Rated Power:
5 HP @ 5,500 RPM
Cooling System:
Water Cooled
Fuel Delivery:
1 Carburetor
Internal Fuel Tank Capacity:
1.5L (.39 gal.)
Ignition System:
Digital CDI
Starting System:
Recoil
Exhaust:
Under Water, Above Propeller
Lubrication:
Wet Sump
Trim Range:
5-Stage 5°-9°-13°-17°-21°
Tilt Range:
70°
Gear Ratio:
2.08:1
Gear Shift:
F-N-R
Alternator:
Opt. 6-Amp
Propeller:
3-Blade Aluminum
Diameter x Pitch:
7? x 6¾ inches
Available Optional Propellers:
3
Oil Pressure Alert:
Standard
Low Oil Pressure RPM Reduction:
Standard
Rev-Limiter:
Standard
External Fuel Tank Connector:
Standard
Decompression Mechanism:
Standard
One-Touch Stop Button:
Standard
Overall Width:
347 mm/13.66 in.
TRANSOM HEIGHT S Type:
434 mm/15 in.
TRANSOM HEIGHT L Type:
561 mm/20 in.
DRY WEIGHT S Type:
27 kg/60 lb.
DRY WEIGHT L Type:
27.5 kg/60.6 lb.
